Nucleus

A portable mesh radio with two parallel networks built for ATAK. High-speed WiFi mesh for full ATAK operations — voice, video, SA, chat — with a LoRa mesh running in parallel to extend your reach miles beyond WiFi range. No plugins required.

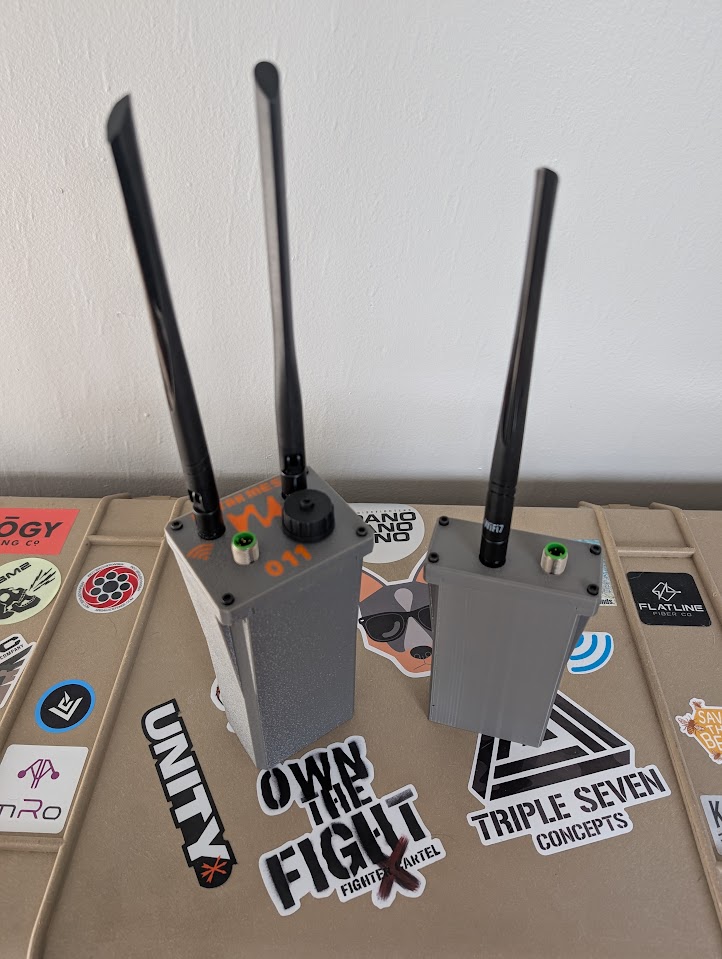

Nucleus Product Family

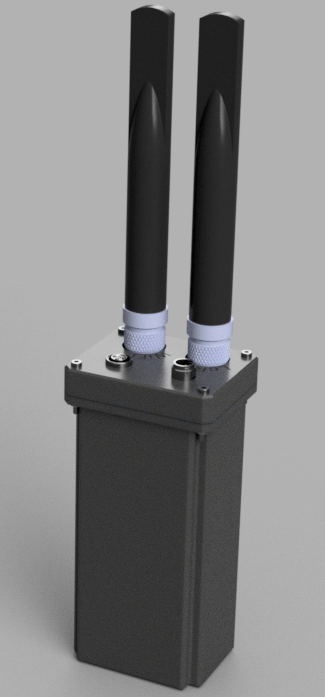

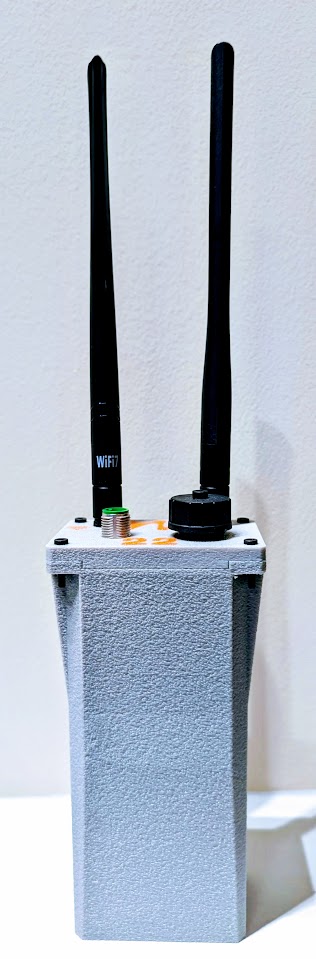

The Nucleus

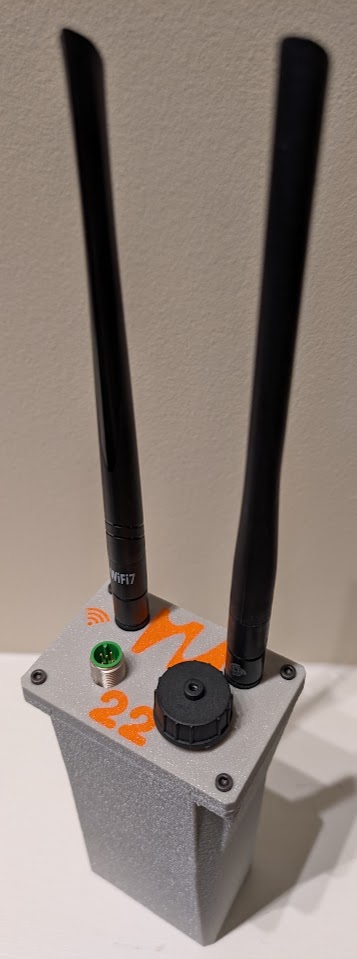

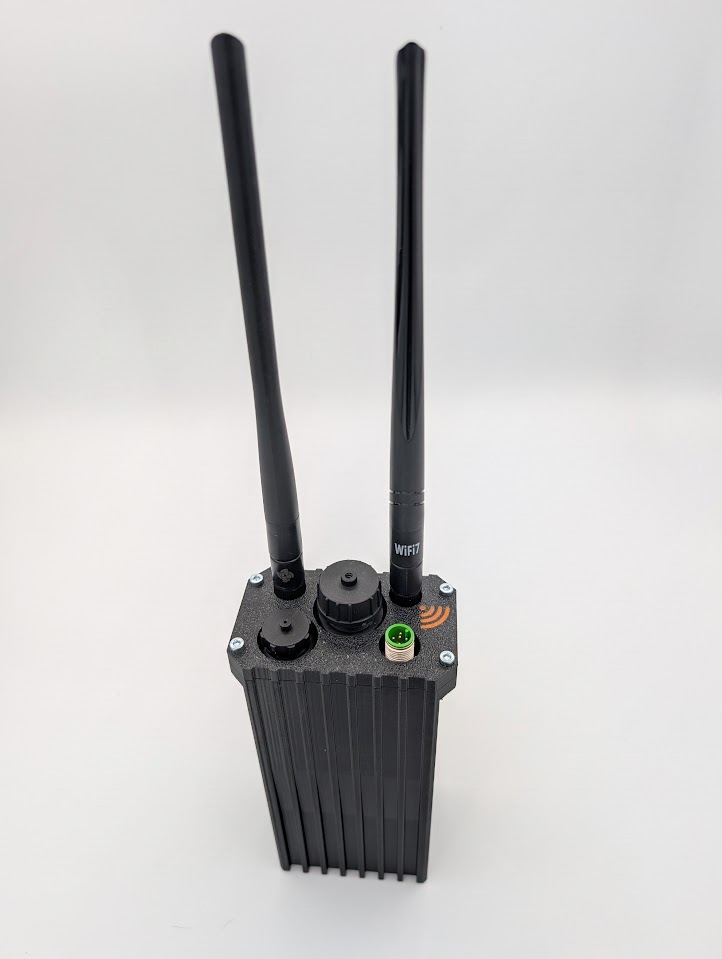

Nucleus Nucleus top view

Nucleus

ATAK-ready mesh radio with WiFi mesh and LoRa CoT bridge

  • ATAK Integration
  • ATAK works natively over the WiFi mesh — SA, chat, pictures, routes, and data packages at full speed with no plugins
  • Built-in CoT bridge transparently forwards ATAK SA and chat over Meshtastic LoRa — no plugin needed on the phone, zero configuration
  • ATAK voice plugin works across the WiFi mesh — contact discovery, multi-channel support
  • Video streaming via OpenTAK ICU — when OpenTAKServer is installed, its built-in MediaMTX server distributes video to all ATAK clients
  • Optional OpenTAKServer runs directly on a Nucleus node — portable TAK server for field operations
  • Radios & Connectivity
  • 802.11s WiFi mesh — ~30 Mbps close range, 1–5 Mbps out to 1–3 miles with elevation and LoS. WPA3 encrypted.
  • Built-in Meshtastic LoRa radio (RAK4631) — ~6.8 kbps (Short/Fast), tested 8+ miles with LoS
  • LoRa mode switchable via web UI: CoT Bridge mode or BLE mode (Meshtastic phone app)
  • Both radios use mesh topology — data hops through every connected node to extend range, auto-rerouting around failures
  • WiFi Access Point (5.8 GHz) for device connectivity
  • Ethernet port (RJ45) for wired connections or internet gateway
  • Additional Services
  • Onboard OpenDHT server — video, voice, and text via Jami with no internet or central server
  • Reticulum transport for decentralized encrypted messaging (Sideband, MeshChat)
  • Tailscale VPN for secure remote access when internet is available
  • Internet gateway — plug any node into an internet source and share it across the mesh

ATAK Integration

📡

Native ATAK Over WiFi

ATAK discovers other devices and shares SA automatically over the WiFi mesh. Pictures, chat, routes, and data packages all transfer at full WiFi speed — the way ATAK was designed to work.

🔗

LoRa CoT Bridge

The Nucleus runs a CoT bridge daemon that intercepts ATAK multicast traffic on the local network and transparently forwards SA and chat as CoT packets over Meshtastic LoRa. Remote positions appear natively in ATAK — no plugin required on the phone. Rate-limited and loop-protected for reliable operation.

🎙️

Voice Over Mesh

The ATAK voice plugin works natively across the WiFi mesh. Voice traffic, contact discovery, and channel selection all work between nodes automatically — including multi-hop.

🎥

Video Streaming

When OpenTAKServer is installed, its built-in video server receives feeds from OpenTAK ICU and distributes them to all ATAK clients on the mesh. Stream camera feeds from the field to every connected device.

🖥️

Portable OpenTAKServer

OpenTAKServer installs and runs directly on a Nucleus node. Centralized SA, data packages, mission planning, and video feeds — all on a portable, battery-powered device. No cloud, no base station, no external infrastructure.

🔄

Bridge / BLE Mode Toggle

Switch the LoRa radio between CoT Bridge mode for ATAK, or release it for Bluetooth pairing as a standard Meshtastic radio. Toggle from the web dashboard.

Private Communications

📞

Encrypted Voice & Video

Encrypted voice and video calls over the mesh via Jami. No phone company, no cloud accounts, no internet required. Works between remote nodes over Tailscale too.

💬

Secure Messaging

Reticulum-based encrypted messaging across the mesh, VPN tunnels, or internet. End-to-end encrypted regardless of transport. Use Sideband or Columba from a phone, MeshChat from a PC.

📻

Long-Range Encrypted Text

Meshtastic LoRa — encrypted text and GPS over radio. Multi-mile range through terrain that blocks WiFi. No cell towers, no infrastructure. Web UI included — no phone app required.

🔗

Remote Encrypted Link

Tailscale connects remote nodes over the internet via WireGuard. All services — calls, messaging, everything — work transparently over the tunnel.

🛡️

Encrypted Mesh Transport

The WiFi mesh itself is WPA3 encrypted — traffic between nodes is protected before any app-level encryption. Self-healing topology that reroutes around failures automatically.

🔮

Coming: Sovereign Networking

Yggdrasil overlay network comes installed but is not yet preconfigured. The goal: zero-dependency encrypted networking with no accounts and no coordination server.

Platform Details

🌐

Internet Gateway

Plug any node into an internet connection (Ethernet, Starlink, cellular) and the entire mesh gets internet access. Combine with Tailscale or Reticulum for secure internet-bridged communications.

🖥️

Web Dashboard

Built-in web interface for monitoring mesh status, configuring node settings, toggling LoRa bridge mode, and scanning WiFi channels — accessible from any device connected to the node.

🔩

COTS Components

All off-the-shelf, user-replaceable parts with 3D-printed enclosures. No proprietary hardware — repair or modify with standard components.

🐧

Linux-Based & Extensible

Full Linux OS with a standard IP network. Add services, run scripts, or integrate with existing infrastructure using basic Linux knowledge.

Ready to Build Your Network?

Get started with Nucleus mesh nodes. Contact us for pricing and availability.
